Dear Internet Friends,
Hello! I hope that you are all doing excellently. This week I have been working on the level design of Hyperborea as well as implementing a simple bullet system in Hyperborea. Part of the fantasy behind Hyperborea is survival and struggle. With that comes some sort of resource management. This led me to have a project with a couple of desires:
- Ammunition based combat (Hypatia isn’t going to find too many bullets in the wastes)
- Restriction on firing rates (Hypatia uses a breeched loaded rifle)
After some tweaking, I was able to incorporate μ’ki (Riko Sakurauchi)’s system into my game. I will show you the steps of how to do the same in your game!
μ’ki☆Maker‘s [RMMV Plugin] On-Map Bullets
- Yanfly’s Button Common Events (and its dependencies)
- RPGMaker MV.
Designing a Small Bullet Image
I used GIMP to create a small bullet what was transparent. Using a spray tool, I initially built the bullet at 32×32 pixels. overlaying gray with black. This proved too big, however, so I scaled it down to 8×8 pixels. After finishing the bullet, save it as a .png and place it in the img\pictures folder in your game.

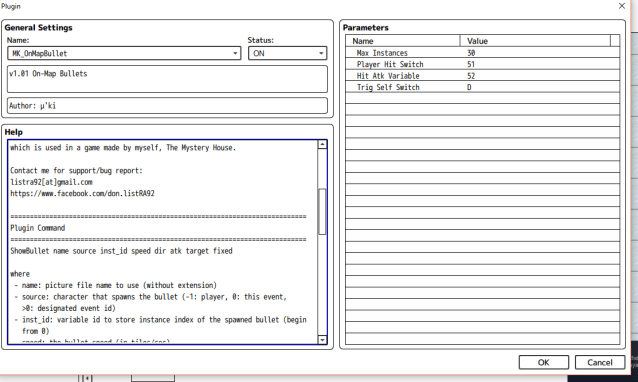

Initialising the Plugin
I left the initial settings the same as default after enabling the plugin. The plugin description is perhaps the most important nibble of information that we can glean from here. The ShowBullet plugin command offers a wide array of choices. However, you do not actually need to use all of them. I omitted target and fixed. Hoping for the player to aim themselves.
ShowBullet name source inst_id speed dir atk target fixed where - name: picture file name to use (without extension) - source: character that spawns the bullet (-1: player, 0: this event, >0: designated event id) - inst_id: variable id to store instance index of the spawned bullet (begin from 0) - speed: the bullet speed (in tiles/sec) - dir: 1~8: down, left, right, up, SW, SE, NW, NE, 9: towards target, 10: homing - attack: the bullet's Atk value - target: character to aim towards (for dir = 9 or 10) - fixed: whether not to rotate the bullet (can still be changed by MoveBullet command)
Shooting the Bullet Event
Open a common event in the database (f9) and press plugin command.
My standard shoot became “Plugin Command：ShowBullet bullet -1 100 30 1 20”
- -1 = Bullet spawns from character
- 100 = a random variable number that I have saved to use.
- 30 = speed in tiles per second
- 1 = Down Direction
- 20 = Attack which I did not really implement.
Now we run into our first issue. We want the payer to shoot in the direction that she is facing. This is easily fixed by using a conditional branch and using the character direction as the condition.
Corroborate the if statements with the directional numbers in the plugin description”- dir: 1~8: down (1), left (2), right (3), up (4)…”
◆If：Player is facing Down ◆Plugin Command：ShowBullet bullet -1 100 30 1 20 ◆ ：End ◆If：Player is facing Left ◆Plugin Command：ShowBullet bullet -1 100 30 2 20 ◆ ：End ◆If：Player is facing Right ◆Plugin Command：ShowBullet bullet -1 100 30 3 20 ◆ ：End ◆If：Player is facing Up ◆Plugin Command：ShowBullet bullet -1 100 30 4 20 ◆ ：End
Adding Flairs: Ammunition and Reloading Animation
Using the database, I added an item called cartridge. These represent the amount of ammunition that Hypatia has. Installing the ammunition is simple. Go into your common event where you set up your bullet shooting system and add an if statement to the line:
◆If：Party has Cartridge
◆Change Items：Cartridge – 1
Another requirement of mine was to add a different sprite when firing. This was simple. I added a change actor images line (and an angry bubble for flair) BEFORE a forced wait. This gives the illusion of her aiming.
◆Change Actor Images：Hypatia, hypatia(4), $heroine-girl student 6 onepiece(0), sv_heroine-girl student 1 sweat suit
◆Show Balloon Icon：Player, Anger
At the end of the if branch, I added another Change Actor Images to revert her back to her normal “walking” form.
◆Change Actor Images：Hypatia, hypatia(4), $heroine-girl student 1 uniform(0), sv_heroine-girl student 1 sweat suit.
In the end, a simple draft of the code looks like this.
◆If：Party has Cartridge ◆Change Items：Cartridge - 1 ◆Change Actor Images：Hypatia, hypatia(4), $heroine-girl student 6 onepiece(0), sv_heroine-girl student 1 sweat suit ◆Show Balloon Icon：Player, Anger ◆Wait：85 frames ◆If：Player is facing Down ◆Plugin Command：ShowBullet bullet -1 100 30 1 20 ◆ ：End ◆If：Player is facing Left ◆Plugin Command：ShowBullet bullet -1 100 30 2 20 ◆ ：End ◆If：Player is facing Right ◆Plugin Command：ShowBullet bullet -1 100 30 3 20 ◆ ：End ◆If：Player is facing Up ◆Plugin Command：ShowBullet bullet -1 100 30 4 20 ◆ ：End ◆Change Actor Images：Hypatia, hypatia(4), $heroine-girl student 1 uniform(0), sv_heroine-girl student 1 sweat suit ◆ ：Else ◆Text：hypatia(1), Window, Bottom ：Text：no ammo ◆ ：End

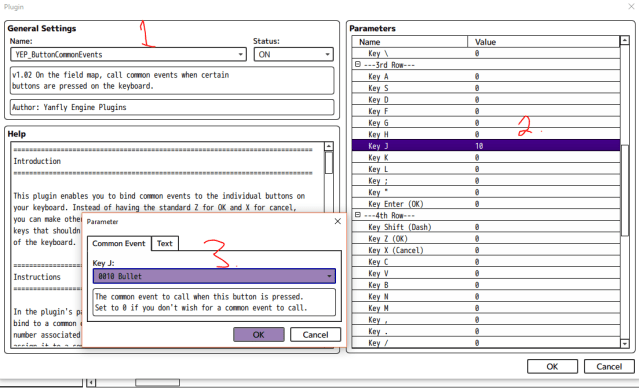

Mapping the Button
This is where Yanfly Button Common Events Plugin comes in handy. Be careful not to mix it up with Keyboard config, because they are not compatible! I learned the hard way.
Setting up the button is easy. Just link it to your common events. For some random reason I chose the “J” key, but I will probably change it later.
What fun is a bullet system if nothing reacts to a shot? Luckily in the plugin settings of μ’ki☆Maker‘s [RMMV Plugin] On-Map Bullets, it conveniently allows you to toggle a self-switch on an event. On a walking NPC, add another page where the Self-Switch is D (or whatever you set it to) and set the image to a character’s injured form!
Thank you all so much for reading. I hope that you learned something! More updates to come next week and some more Self Insert Draft things on Wednesday!
